Morimoto 1banger Led Pods: Hxb Wide Beam

FEATURES & BENEFITS

  • Brightness: Powered by Osram HX Boost LEDs for intense illumination.
  • Wide Beam: 1Banger HXB Wide Beam covers road edges, ideal for challenging conditions.

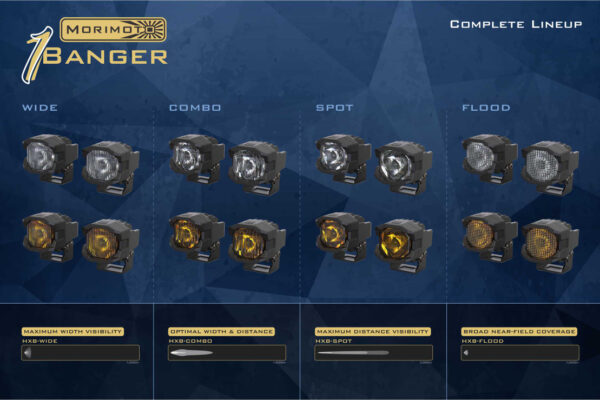

  • Versatility: Choose from Spot, Combo, Flood, and more beam patterns.
  • Rugged: Built tough with copper DTP PCB and IP69K weather resistance.
  • Street Legal: Compliant with SAE J581 standards for on-road use.

Description

Introducing the Morimoto 1Banger LED Pods – the ultimate solution for boosting your vehicle’s lighting performance! These compact powerhouses are designed to provide maximum brightness in a minimal footprint. With proprietary technology, including advanced optics and Osram HX Boost LEDs, the 1Banger delivers exceptional beam control and intensity. What sets these pods apart is their extraordinary wide beam pattern. The 1Banger HXB Wide Beam illuminates the far edges of the road directly in front of your vehicle, providing unparalleled visibility in challenging conditions. With its dual-axis control and active hot spot control, it projects peak intensity right along the top of the beam pattern. The result? An extremely bright fog or wide beam pattern that outshines the competition. What’s more, these pods are built to last, with a copper DTP PCB, IP69K weather resistance, and compliance with SAE J581 standards for street legality when properly aimed.

WHAT’S INCLUDED

  • LED Pods: 2x (One Pair) Morimoto 1Banger HXB Wide (White or Yellow)
  • Brackets: 2x (One Pair) Universal U-Shape Mounts
  • Hardware: Complete pack (stainless steel)
  • Optional Wiring: 1x Morimoto Switched Relay Harness or 2x Deutsch DT Pigtails
  • COMPATIBILITY

    • Universal: With Included U Brackets
    • TECHNICAL SPECIFICATIONS

      • Note: These specifications are per pod / each!
      • Intensity (White): 6,750 Cd (67.5 lux @ 10m)
      • Intensity (Yellow): 5,500 Cd (55.0 lux @ 10m)
      • Input: Integrated Deutsch DT 2-Pin
      • Power (stabilized): 14.5w
      • Current: 1.07A @ 13.5V DC
      • Peak Luminosity (raw): 1,000 lm
      • Dimensions: 48.8mm W, 50.9mm H, 59.6mm D
      • Color: 2700K (Yellow) or 5700K (White)
      • Light Source: 1x Osram HX Boost
      • Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

Additional information

#PART

BAF100
